Description

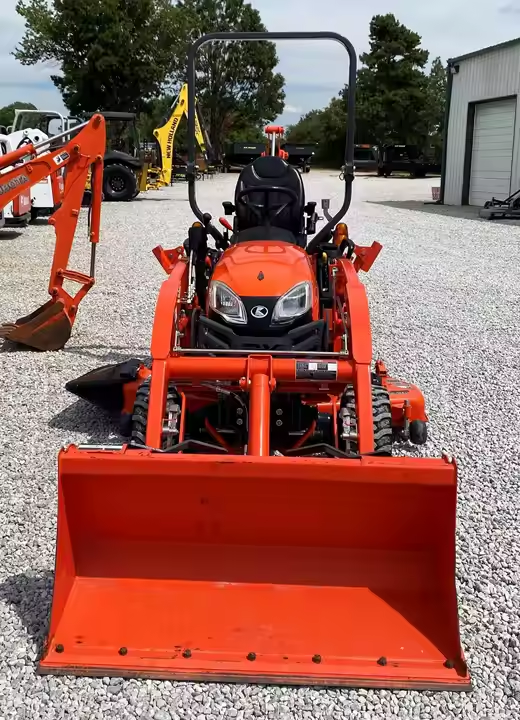

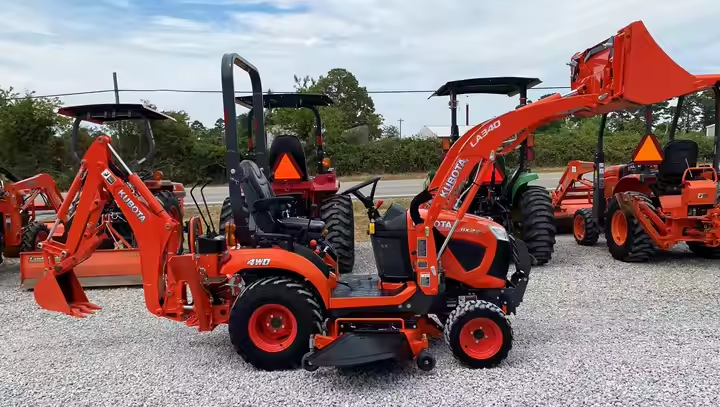

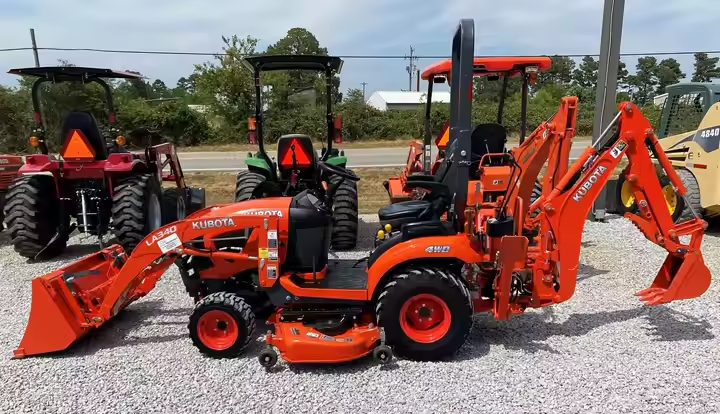

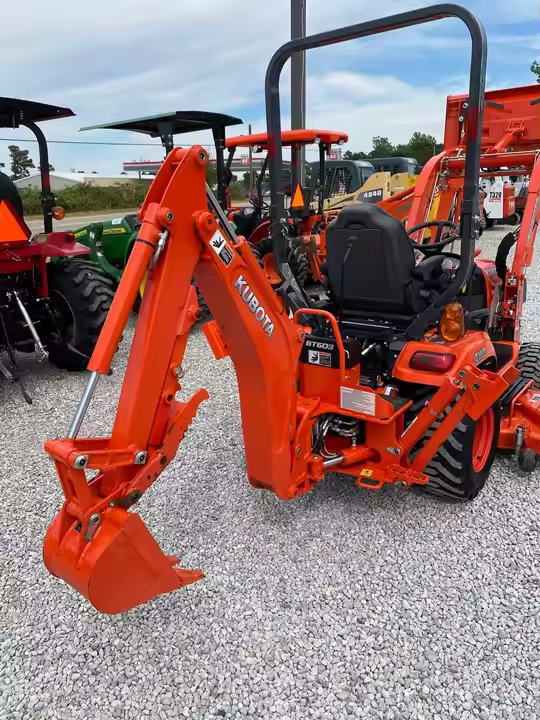

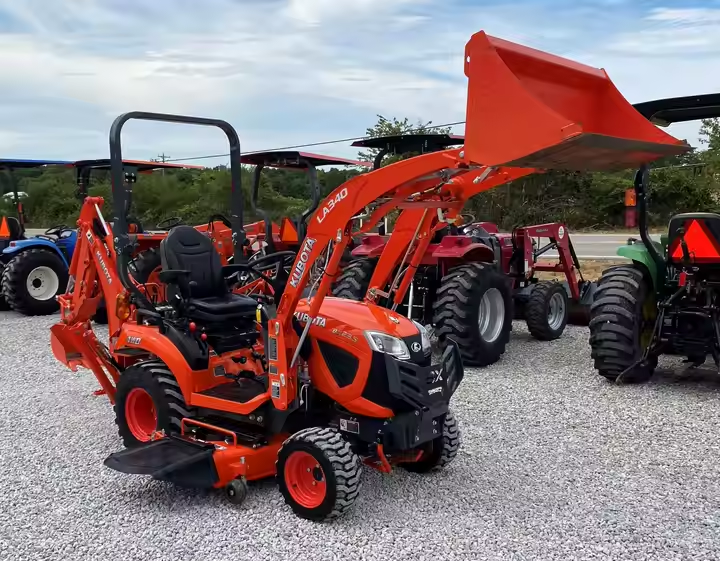

DETAILS OF KUBOTA BX-23S TRACTOR WITH MOWER
Dimensions
D
Wheelbase
4.6ft in
E
Ground Clearance
0.7ft in
Front Tread Range
36.62in
Rear Tread Range
32.29in
Width
45.08in
Overall Length With 3-Point Hitch
8.26ft in
Height With Rops
Specifications
Engine
Pto Horsepower
17.7 hp
Engine Make
Kubota
Engine Model
D902
Engine Type
Liquid-cooled, 3-cylinder diesel
Gross Power
23hp
Power Measured @
3200rpm
Displacement
54.8cu in
Operational
Fuel Capacity
6.6gal
Operating Weight 4wd
1569.7lb
3 Point Hitch Type
Optional
3 Point Hitch Lift Capacity @ 24 Inches
683.5lb
Turning Radius
7.6ft in
Transmission
Pto Option Available?
Live independent PTO (with hydraulic clutch)
Transmission Type
HST, High-Low gear shift ( 2 forward / reverse )
Max Speed – Forward
8.4mph
Max Speed Reverse
6.6mph
Tires
Standard_Option_Front
18×8.5–10
Standard_Option_Rear
26×12–12
Hydraulic
Steering Type
Hydraulic power steering
Pump Flow Capacity
6.2gal/min
