Description

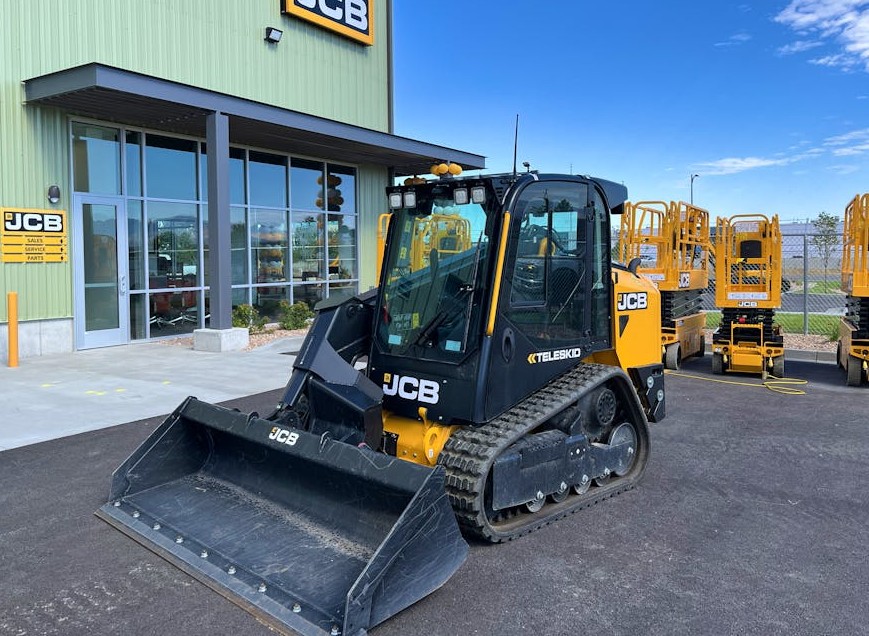

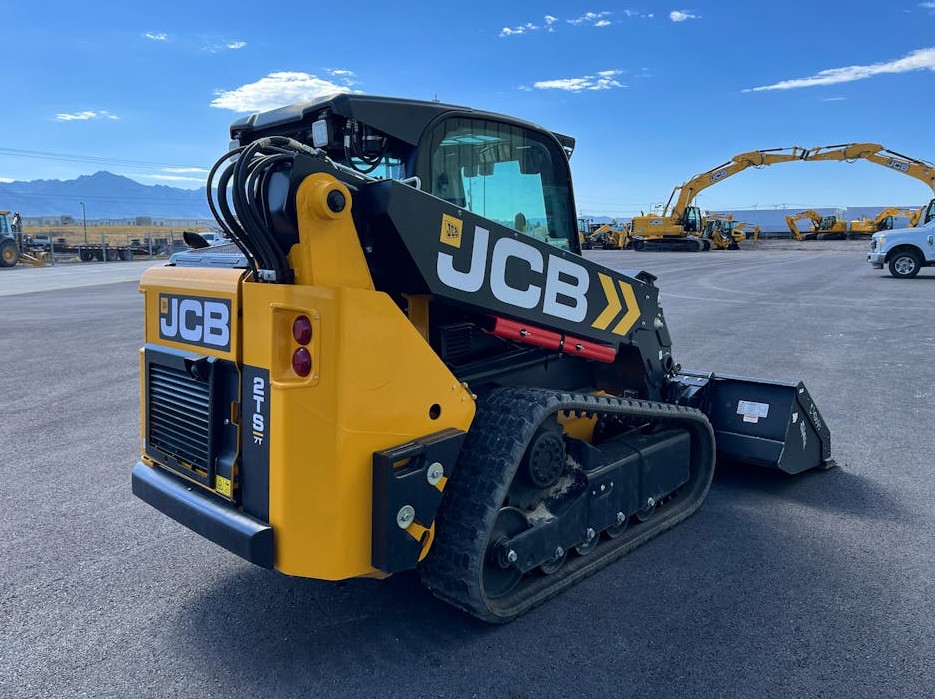

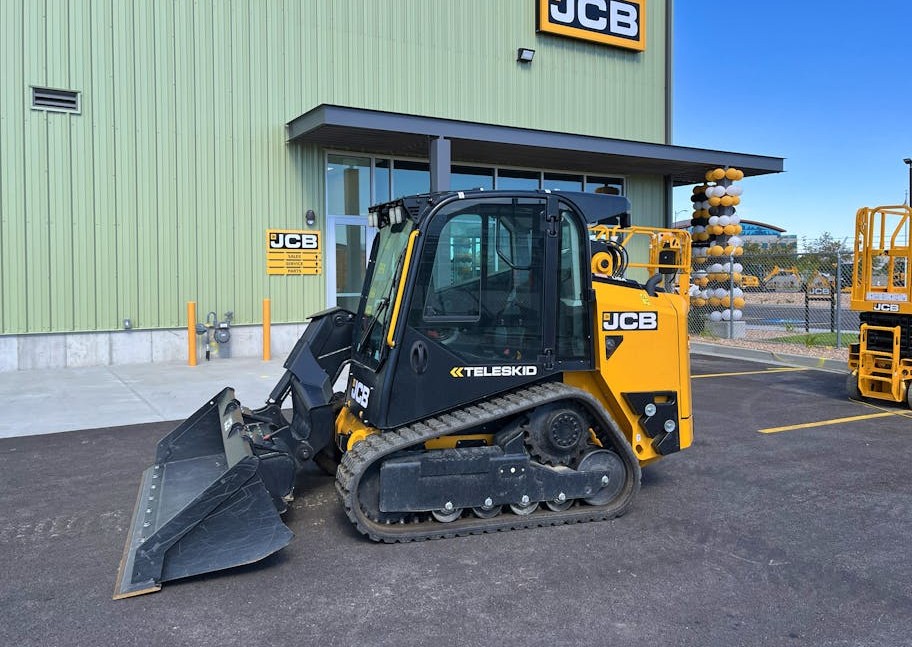

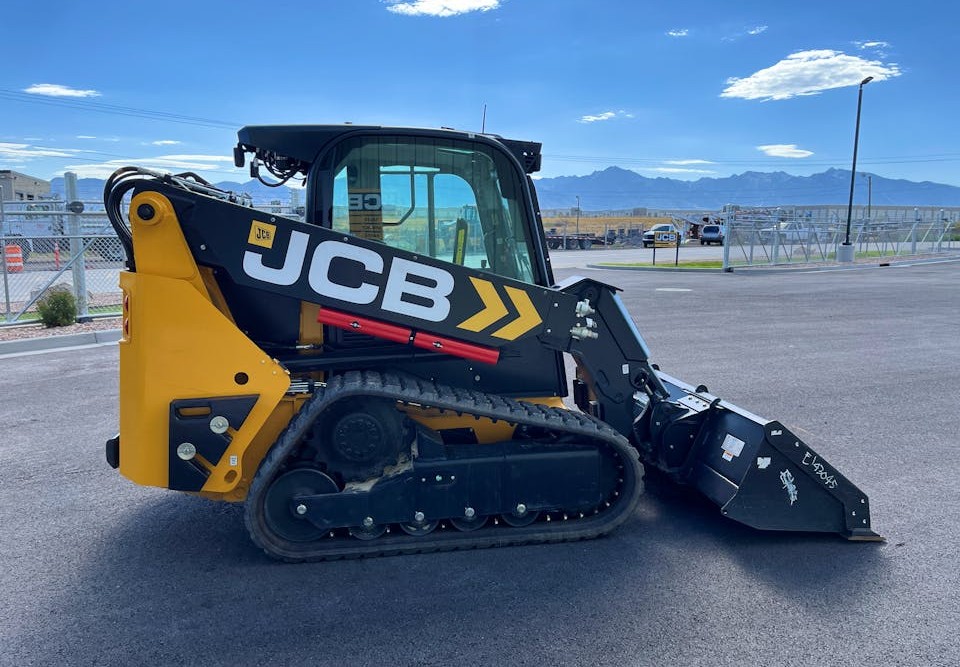

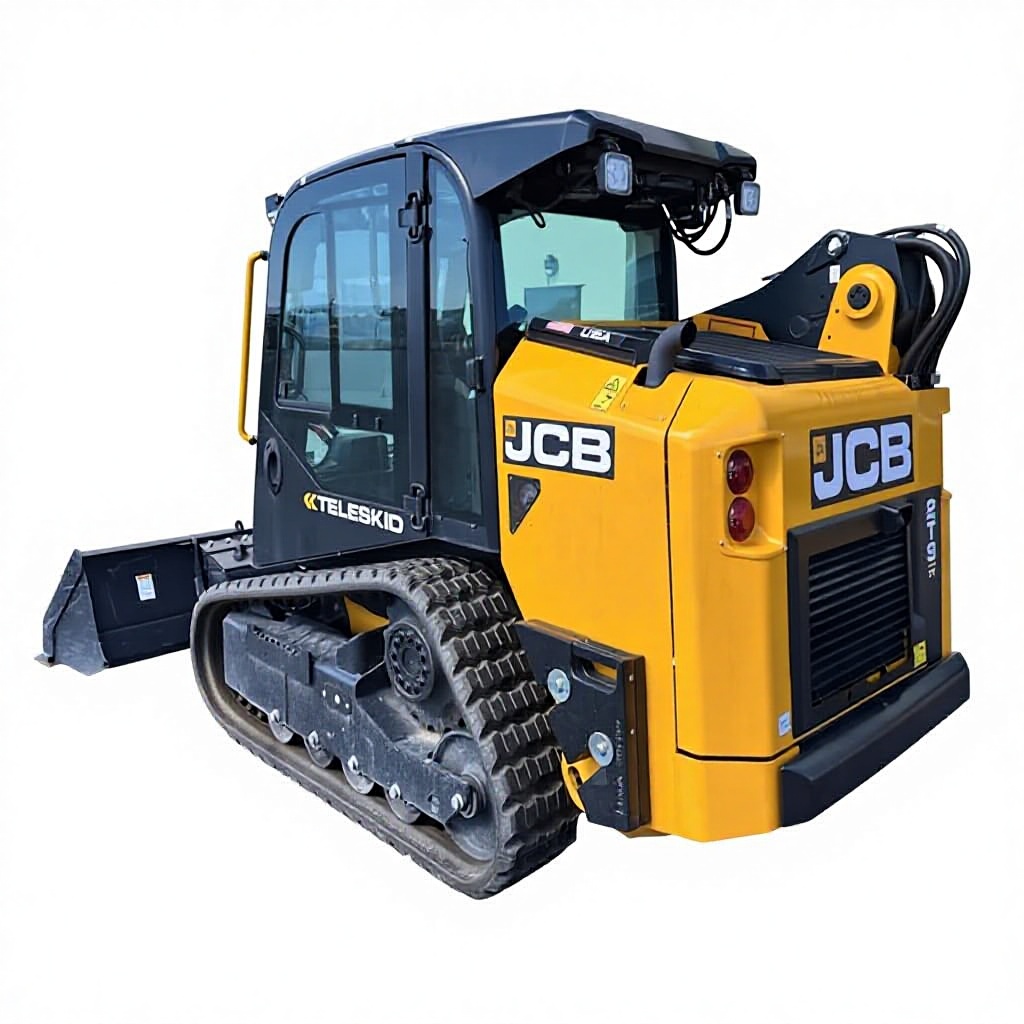

The JCB 2TS-7T Teleskid is a compact track loader designed to combine the versatility of a skid steer with the reach and lift capabilities of a telescopic handler. It is the world’s first and only small-platform compact track loader with a telescoping boom, setting it apart from conventional skid steers.
Key Features and Description
Telescopic Boom: Extends to provide 11 ft 10 in (3.6 m) of lift height and 7 ft (2.1 m) of forward reach — about 60% more reach than standard models. This allows operators to load from one side of a flatbed, reach over obstacles, and even dig up to 2 ft (0.5 m) below ground.
Operating Capacity: 2,096 lb (951 kg) with boom retracted, and 1,140 lb fully extended.
Operating Weight: 9,914 lb (4,497 kg).
Engine:
Manufacturer: Kohler
Model: KDI 2504 TCR
Power: 74 hp (55 kW)
Type: Turbocharged diesel engine
Dimensions:
Height to top of cab: 79 in
Overall length (with bucket): 142 in
Width: 71 in
Lift & Reach: Telescopic Powerboom™ delivers excellent visibility (270° from the cab) and increased safety thanks to JCB’s single-arm design and side-entry door, making it easier and safer to enter and exit than traditional skid steers.
Cab & Comfort:
47% larger cab than competitors
Features like climate control, air-suspension seat, and smoothride system (SRS) enhance operator comfort and reduce fatigue
Electric-over-hydraulic controls with optional ISO/H-pattern control schemes and a 7-way multifunction joystick
Safety & Efficiency:
Superior visibility and ergonomics
Increased tractive and breakout force
Self-leveling boom and reversing fan for cooling efficiency
In short, the JCB 2TS-7T offers the maneuverability of a skid steer and the reach and lifting power of a telehandler, making it ideal for construction, landscaping, agriculture, and utility work.
